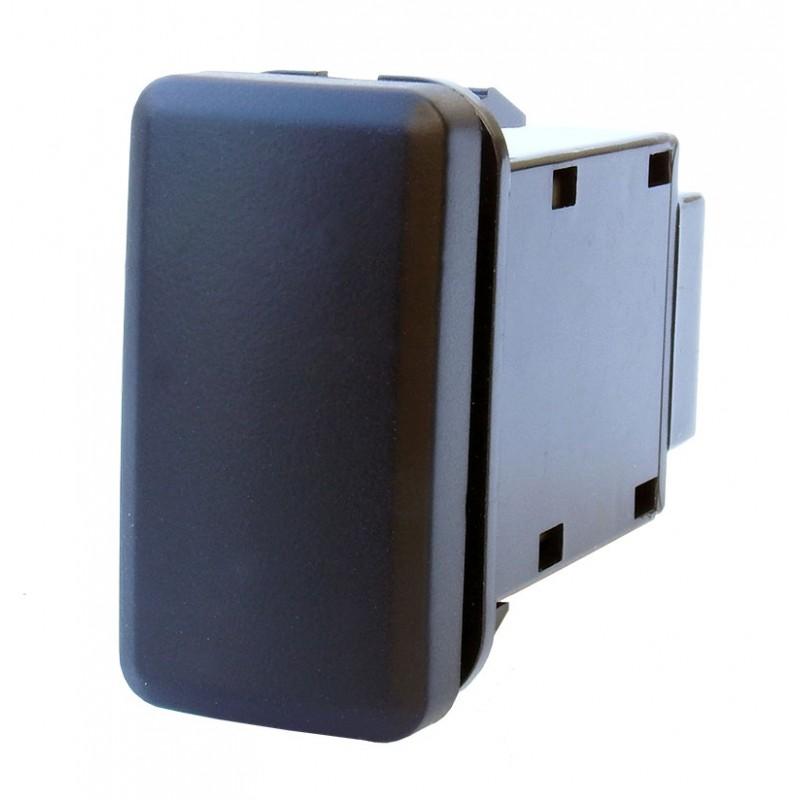

Toyota VIGO Push Switch 40x20mm Blank

Toyota push button switch, large.

Description:

This switch suits the following models only:

Toyota Prado 120 Series 2003-2009

Toyota Landcruiser 100 Series    1998 - 2007

Toyota Landcruiser 79 Series   New Model

Toyota FJ Cruiser     2010 - 2013

Toyota Hilux     2005 - 2015

Toyota Fortuner 2006 - 2015

Material: Plastic

LED Light Color: Blue

Black hard surface rocker.

Rated at 3Amp 12V.

High quality single pole single throw ON-OFF push switch.

Face surface size: 40 x 20 mm

Uses the original mounting hole of the vehicle.

Switch cutout required for the other accessories is about 17mm x 36 mm.

These switches are an aftermarket switch that locks into your existing panel

super easy to install in less than 10 min's.

All symbols are Laser etched directly onto the switch face using modern high Tech

laser engraving equipment to ensure long image life.

Wiring diagram:

Red wires should be connected to battery +,

Black wire should be connected to battery -,

Green wire should be connected to load +(load- connected to the battery -),

Blue/Yellow wire can be connected to battery + or not connected(You have the different choice based on yourself).

 Package Contents:

1x Push Switch

1x Wiring Loom
